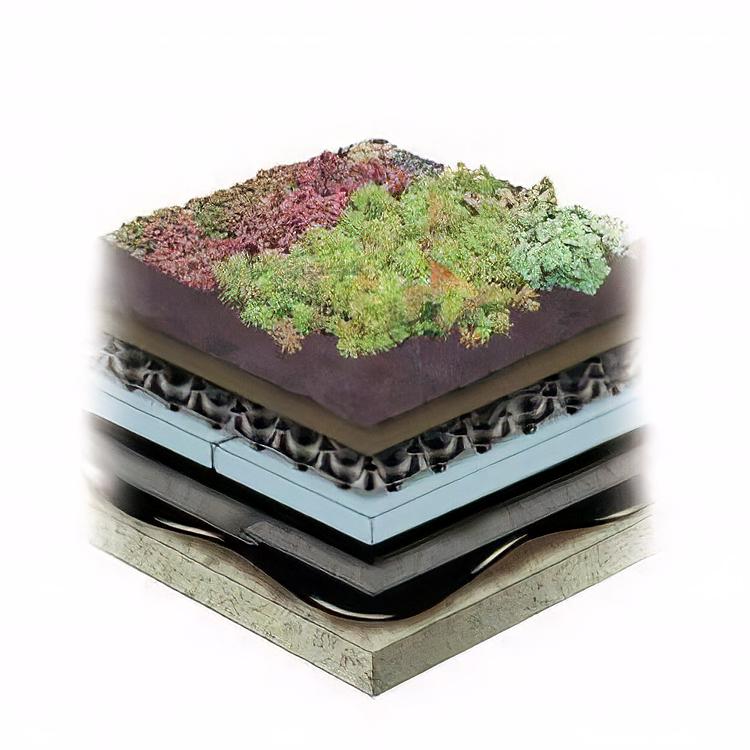

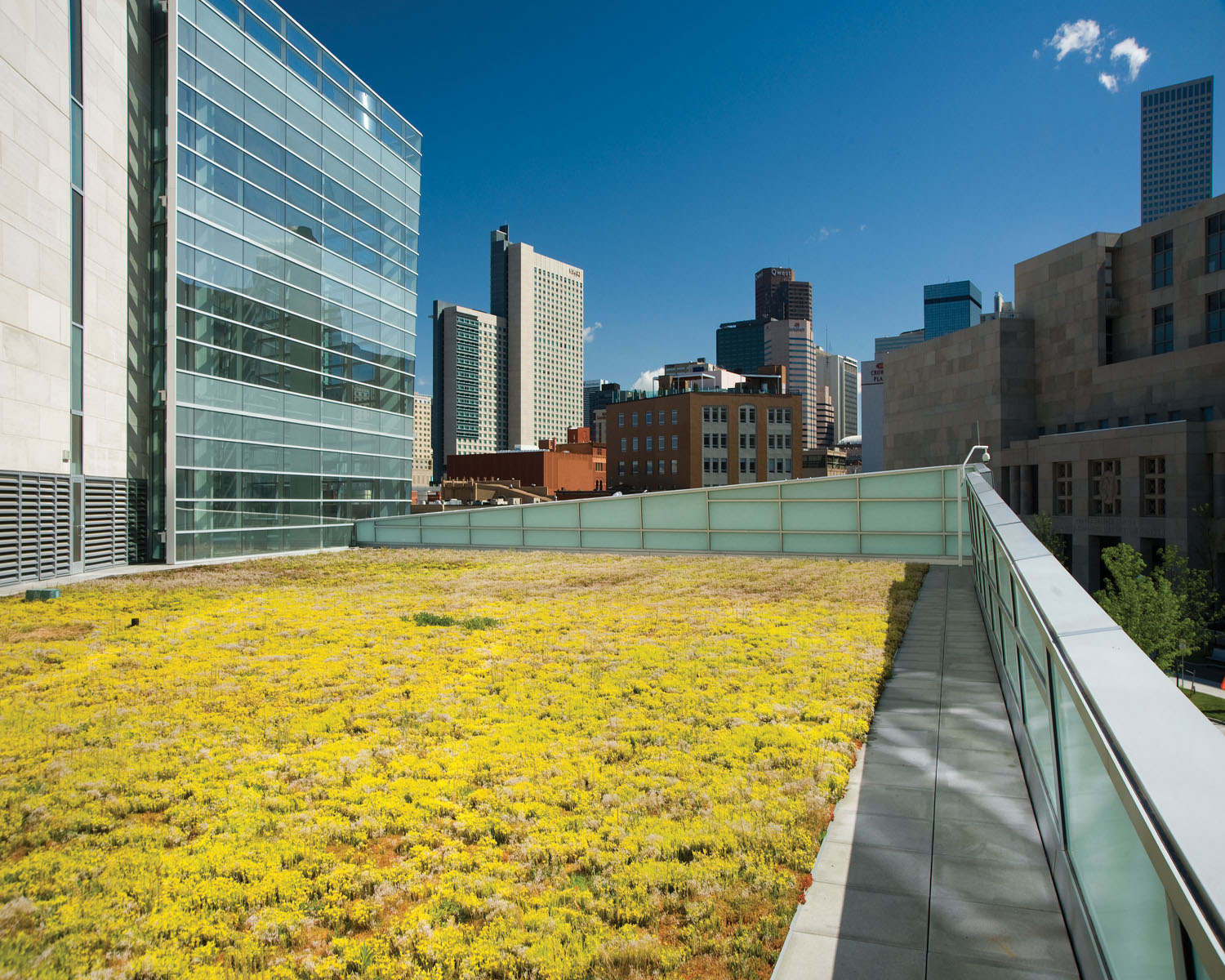

The Extensive Garden Roof® Assembly is ideally suited for locations that will receive little maintenance or where structural capabilities are a concern.

Unlike Intensive Garden Roof Assemblies, Extensive Garden Roofs are not intended for recreational use and are typically chosen for their appearance or to help reduce the "urban heat island" effect and minimize stormwater run-off. Extensive roofs only require a shallow growing media depth, generally as little as 3"-6" (depending on the region), and therefore add little weight to the roof structure below when compared to a standard ballasted PMR roof.

Recommended plant types for extensive roofs need to be drought, wind and frost resistant, such as self-generating sedums, herbs, grasses and other vegetation that can withstand harsh growing conditions.

The water stored in the growing media and drainage/retention layer is sufficient to sustain the drought resistant plants between periods of normal rainfall. Thinner assemblies and very lightweight growing media blends are available for Extensive Garden Roof Assemblies. Contact us for specifics.

Features of the Extensive Garden Roof Assembly:

  • Depth (3” - 6” of growing media)
  • Reduce and delay stormwater runoff
  • Help to mitigate the urban heat island effect
  • Requires minimal maintenance
  • Can be used on flat or sloping roofs
  • InstaGreen® GT-4 Tray available for modular applications
  • Vegetation options - plugs, cuttings, InstaGreen® Sedum Carpet or InstaGreen® Sedum Tile

Typical Application:

An Extensive Garden Roof Assembly can be applied to flat roofs and sloping roofs with a pitch of up to 12:12 or 45°, provided the appropriate measures are taken to cope with the shear forces and soil retention. Extensive roofs are typically lightweight and can be installed over a variety of structures including metal roof decks.

Recent Press

  • November 26, 2019
    Palo Alto, CA. (November 26, 2019) There are many reasons to incorporate a green or living roof into a design, including energy conservation, water management, and financial benefits. For one project in Palo Alto, California, the benefits of having...
  • November 14, 2019
    WASHINGTON, D.C. (November 14, 2019) The Kennedy Center’s first expansion since its opening in 1971, the REACH is the John F. Kennedy Center for the Performing Arts’ historic, $250 million expansion project. A living memorial for President John F...
  • May 2, 2019

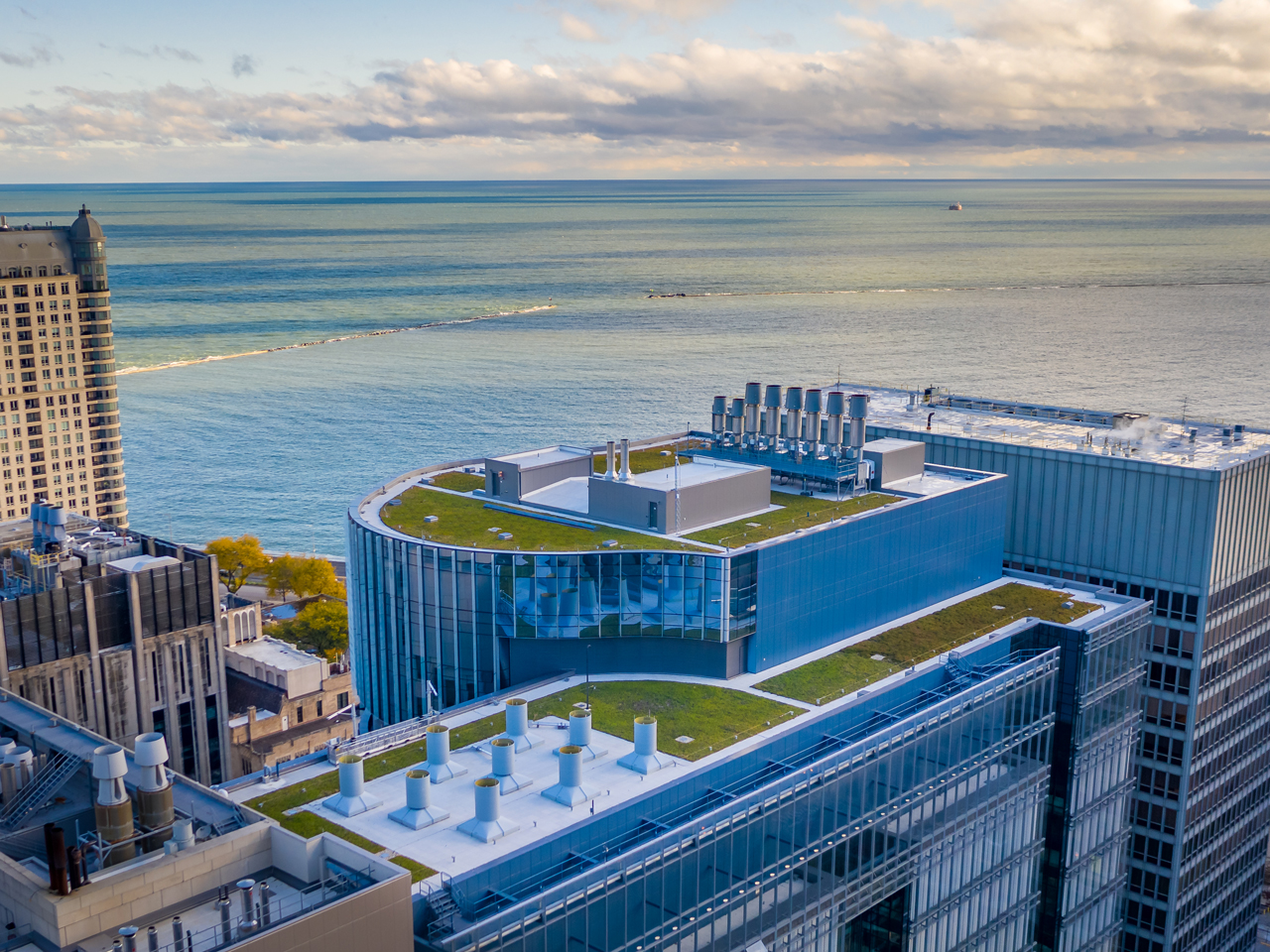

    CHICAGO, ILLINOIS (May 2, 2019) Very near Lake Michigan in Chicago, Northwestern Medical Center faced several challenges in bringing a new campus building to life. Designed by Perkins+Will, the project involves a phased construction where a 14-story...
  • January 25, 2019

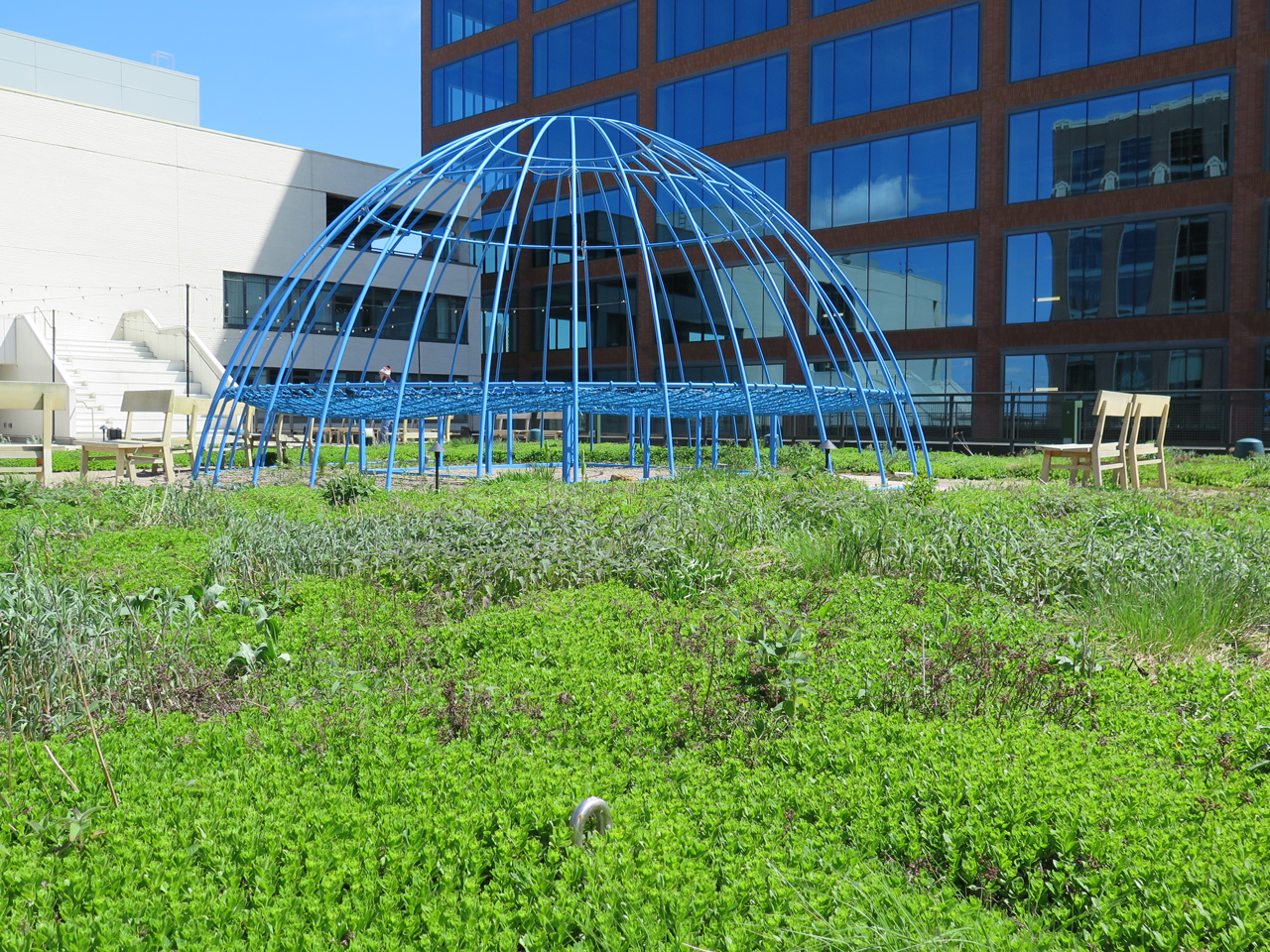

    CHICAGO, ILLINOIS (January 25, 2019) The Ace Hotel is located in Chicago’s Fulton Market Historic District. It features 159 guestrooms and amenities including rooftop event spaces with stunning views of the city. The complex features several...
